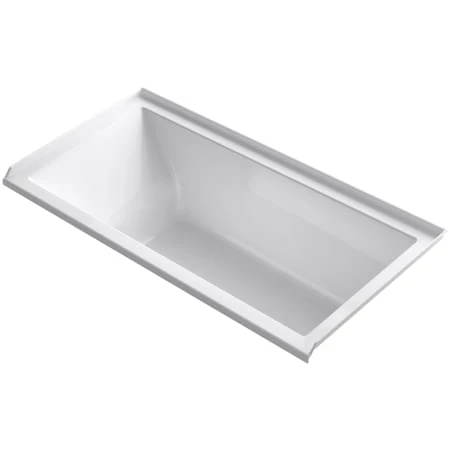

Kohler Underscore 60″ Soaking Tub with Right Drain

Product Features:

• Kohler tubs are fully covered under warranty for up to a year after installation
• Tub constructed of acrylic, a strong and flex-resistant material that is chip-resistant and easy to clean
• Soaking tub – provides the user with a soothing and relaxing bathing experience
• Streamlined for simplicity, baths from the Underscore collection exude refined style and contemporary flair
• Comfort Height design – provides a lower wall to step over when entering the bath, but maintains the comfortable soaking depth of standard tubs
• Installs in a three-wall alcove configuration
• Tub comes standard with molded lumbar support, furthering the user’s comfort
• Equipped with an overflow assembly, permitting the user to enjoy a deep soak without worrying about spillage
• ADA compliant – complies with the standards set forth by the Americans with Disabilities Act
• Product Meets or Exceeds the Following Codes/Standards: CSA B45.5, 45.0; ANSI A117.1; UL 1795

Product Technologies / Benefits:

• Material – Acrylic: A strong, flex resistant material with a smooth finish that is easy to clean and resists chipping and cracking.

Product Specifications:

• Overall Height: 20-1/4″ (measured from top of tub rim to bottom of basin)
• Overall Width: 30″ (measured from back most to front most point on outer rim)
• Overall Length: 60″ (measured from left most to right most point on outer rim)
• Basin Width (Bottom): 20″ (back to front measurement at bottom of basin walls
• Basin Length (Bottom): 42-7/16″ (left to right measurement at bottom of basin walls)
• Basin Width (Top): 24-1/4″ (back to front measurement at top of basin walls)
• Basin Length (Top): 54-5/16″ (left to right measurement at top of basin walls)
• Water Depth: 15-1/8″ (depth of water at tub’s maximum capacity)
• Maximum Water Capacity: 59.8 gallons
• Drain Location: Right

Variations of K-1121-R:

• K-1121-RW: soaking bath and bask heated surface version of this tub
• K-1167-RFG: bubblemassage air bath version of this tub
• K-1167-RGCR: bubblemassage air bath and chromatherapy version of this tub
• K-1167-GCRRW: bubblemassage air bath and bask heated surface and chromatherapy version of this tub
• K-1167-GVR: vibracoustic and bubblemassage air bath version of this tub
• K-1167-GVCRW: vibracoustic and bubblemassage air bath and bask heated surface and chromatherapy version of this tub
• K-1167-GRW: bubblemassage air bath and bask heated surface version of this tub
• K-1167-RH2: whirlpool and heater version of this tub
• K-1167-RVB: vibracoustic version of this tub
• K-1167-RVBC: vibracoustic and chromatherapy version of this tub
• K-1167-VCRW: vibracoustic and chromatherapy and bask heated surface version of this tub
• K-1167-VBRW: vibracoustic and bask heated surface version of this tub
• K-1167-XH2GR: whirlpool and bubblemassage air bath version of this tub
