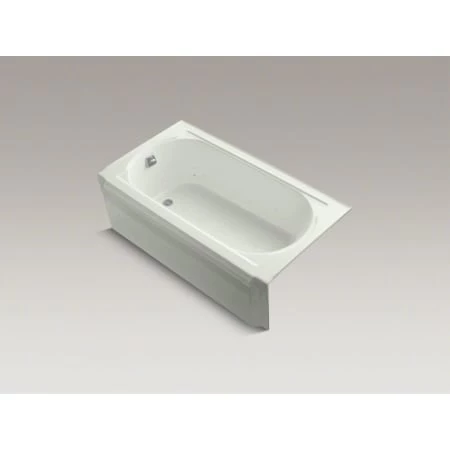

Kohler Memoirs 60″ Air Bath Tub with Left Drain

Product Features:

• Kohler’s cast iron components carry a limited lifetime warranty
• Tub constructed of enameled cast iron – combines the strength and durability of cast iron with the damage resistance of a baked, powder-coated finish
• Bubble massage hydrotherapy tub – provides one of the most relaxing bath experiences available
• Tubs from the Memoirs Collection feature authentic beauty and strength
• Includes an integral apron
• 43 air jets release thousands of bubbles that surround, support, and massage the body
• A variable-speed blower allows adjustment of the massage intensity to 18 different levels
• Comfort Height design – provides a lower wall to step over when entering the bath, but maintains the comfortable soaking depth of standard tubs
• Installs in a three-wall alcove configuration
• Tub comes standard with molded lumbar support, furthering the user’s comfort
• A textured slip-resistant SafeGuard® bottom removes the danger of slipping and sliding while moving about the tub
• Equipped with an overflow assembly, permitting the user to enjoy a deep soak without worrying about spillage
• A built-in heater keeps the water at the desired temperature as the user enjoys a long soak without the water getting cold
• ADA compliant – complies with the standards set forth by the Americans with Disabilities Act
• Product Meets or Exceeds the Following Codes/Standards: CSA B45.2, C22.2; ASME A112.19.7, A112.19.1; ANSI A117.1; UL 1795

Product Technologies / Benefits:

• Enameled Cast-Iron: Kohler Enameled Cast-Iron combines the strength, durability, and insulation benefits of cast-iron with the scratch, chip, and burn resistance of a baked, powder coat finish and comes with an exceptional Lifetime Limited Warranty. When these materials are combined it gives the sink or tub the strength to last a lifetime of use. Kohler Enameled Cast-Iron is also available in a wide variety of specialty colors allowing you to truly customize your home.



• BubbleMassage: BubbleMassage hydrotherapy tubs massage and soothe the whole body, channeling warm air through a 360-degree staggered air jet design. The random motion of thousands of bubbles clears the mind and relaxes muscle tension, and intensity is variable from a gentle bubbling to a vigorous massage.
• Built-In Heater: A built-in heater maintains the warmth of the bathwater as it recirculates through water intakes and jets, allowing for a longer soak without the bathwater cooling.

Product Specifications:

• Overall Height: 17-7/16″ (measured from top of tub rim to bottom of basin)
• Overall Width: 33-3/4″ (measured from back most to front most point on outer rim)
• Overall Length: 60″ (measured from left most to right most point on outer rim)
• Basin Width (Bottom): 23″ (back to front measurement at bottom of basin walls
• Basin Length (Bottom): 45″ (left to right measurement at bottom of basin walls)
• Basin Width (Top): 25″ (back to front measurement at top of basin walls)
• Basin Length (Top): 54″ (left to right measurement at top of basin walls)
• Water Depth: 11-5/8″ (depth of water at tub’s maximum capacity)
• Maximum Water Capacity: 52 gallons
• Drain Location: Left
• Blower Motor Voltage: 220 – 240
• Blower Motor Amperage: 3 amps
• Requires 240V hardwired electrical service
