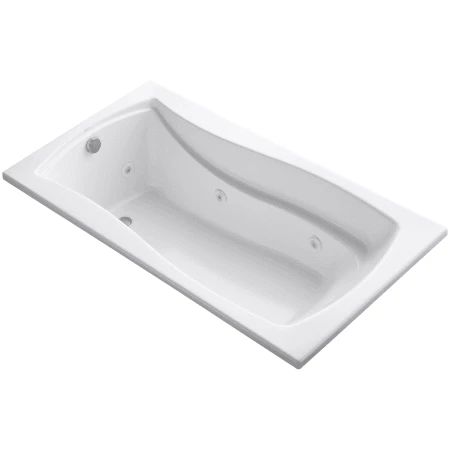

Kohler Mariposa Collection 66″ Three-Wall Alcove or Drop In Jetted Whirlpool Bath Tub with Reversible Drain

Product Features:

• Kohler tubs are fully covered under warranty for up to a year after installation
• All jets are fully adjustable for water intensity and direction of flow
• Jets can be turned off completely
• Finger pads on outer ring for easy adjustment
• Shallow recess for ease of cleaning
• Tub is constructed from an Acrylic material making it strong and flex resistant
• Whirlpool hydrotherapy tub – provides one of the most relaxing and invigorating bath experiences available
• The body contoured design of the Mariposa Collection provides enhanced comfort
• Variable-speed whirlpool with 5 fully adjustable color matched jets offers optimum performance and value
• Hydro-massage flow and direction that can be controlled at each jet
• Installs in a drop-in or three-wall alcove configuration
• A textured slip-resistant bottom takes the worry out of slipping and sliding as you move about the tub
• Product Meets or Exceeds the Following Codes/Standards: ASME, ASTM, UL, CSA, IAPMO
• This tub coordinates seamlessly with other products from the Mariposa Collection

Product Technologies and Benefits:

• Acrylic Material – A strong, flex resistant material with a smooth finish that resists chipping and cracking, as well as being easy to clean.
• Whirlpool Tubs – Kohler Whirlpool tubs are designed to deliver powerful jets of water and air that are fully adjustable in direction and massage intensity, thus allowing your own personal massage.

Product Specifications:

• Overall Height: 20″ (measured from the top of tub rim to the bottom of basin)
• Overall Width: 35-7/8″ (measured from back most to front most point on outer rim)
• Overall Length: 66″ (measured from left most to right most point on outer rim)
• Basin Width (Bottom): 24″ (back to front measurement of the bottom of basin walls)
• Basin Length (Bottom): 48″ (right to left measurement of the bottom of basin walls)
• Basin Width (Top): 30″ (back to front measurement of the top of basin walls)
• Basin Length (Top): 59″ (left to right measurement of top of basin walls)
• Water Depth: 14″ (depth of water at tub’s maximum capacity)
• Maximum Water Capacity: 67-gallons
• Installation Type: Drop-in or three-wall alcove
• Drain Location: Reversible (right or left)
• Drop-In Cutout Required: 64″ X 34″
• Pump Voltage: 120V

Variations of K-1224:

• K-1229: soaking bath version of this tub
• K-1229-W1: soaking bath and bask heated surface version of this tub
• K-1224-G: bubblemassage air bath version of this tub
• K-1224-GW: bubblemassage air bath and bask heated surface version of this tub
• K-1224-VB: vibracoustic version of this tub
• K-1224-VBW: vibracoustic and bask heated surface version of this tub
• K-1224-H: whirlpool and heater version of this tub
• K-1224-W1: whirlpool and bask heated surface version of this tub

With everything that Kohler does it lives on the leading edge of design and technology, while maintaining a constant level of quality regardless of price. Kohler sets the standard of excellence in its field, and yet is constantly striving to improve.

From sustainable products in the kitchen and bath, to engines for lawn tractors and generators, to power systems that protect data centers and urban landscapes all over the world; this is what the Kohler Company is all about.
