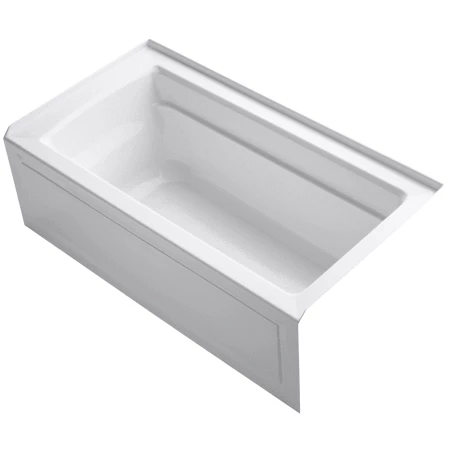

Kohler Archer Collection 60″ Three Wall Alcove Soaker Bath Tub with Armrests, Lumbar Support and Right Drain

Archer

Taking its design cues from traditional Craftsman furniture, the Archer line of baths reveals beveled edges and curved bases for a clean, sophisticated style. This bath offers a low step-over height while allowing for deep, comfortable soaking. A lumbar arch gently support the natural curves of your body.



Product Features:

• Kohler bathtubs are fully covered under warranty for up to a year after installation
• Tub is constructed from an Acrylic material making it strong and flex resistant
• Comfort height design – provides a lower wall to step over when entering the bath, while maintaining the comfortable soaking depth of standard tubs
• Taking its design from traditional Craftsman furniture, Archer reveals beveled edges and curved bases for a clean, sophisticated style
• Integrated armrests and lumbar arches support the natural curves of your body
• Installs in a Three-wall Alcove configuration
• Tub comes standard with molded lumbar support, furthering the user’s comfort
• A textured slip-resistant bottom takes the worry out of slipping and sliding as you move about the tub
• Tub is equipped with an overflow assembly – permitting the user to enjoy a deep soak without worrying about spillage
• ADA compliant – complies with the standards set forth by the American’s with Disabilities Act
• Product Meets or Exceeds the Following Codes and Standards: ADA, ICC/ANSI, CSA, ASTM
• Pair this bath with other products from the Archer Collection for a coordinated elegant look in the bathroom

Product Technologies and Benefits:

• Acrylic Material – A strong, flex resistant material with a smooth finish that resists chipping and cracking, as well as being easy to clean.

Product Specifications:

• Overall Height: 19″ (measured from the top of tub rim to the bottom of basin)
• Overall Width: 32″ (measured from back most to front most point on outer rim)
• Overall Length: 60″ (measured from left most to right most point on outer rim)
• Basin Width (Bottom): 19-11/16″ (back to front measurement of the bottom of basin walls)
• Basin Length (Bottom): 45-1/8″ (right to left measurement of the bottom of basin walls)
• Basin Width (Top): 25-5/16″ (back to front measurement of the top of basin walls)
• Basin Length (Top): 52-3/4″ (right to left measurement of the top of the basin walls)
• Water Depth: 15″ (depth of water at tub’s maximum capacity)
• Maximum Water Capacity: 58-gallons
• Drain Location: Right



Variations:

K-1123

Drop-in version of this model with reversible drain

K-1123-LA

This model with left-hand drain
