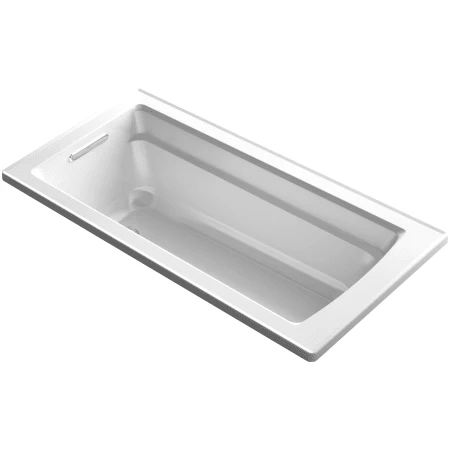

Kohler Archer 66″ ExoCrylic Drop In Soaking Tub with Reversible Drain and Comfort Depth Design

Product Features:

• Kohler tubs are fully covered under warranty for up to a year after installation
• Tub is constructed of ExoCrylic – offers a lighter, more manageable installation
• Soaking tub – provides the user with a soothing and relaxing bathing experience
• The Archer Series takes its design from traditional Craftsman furniture
• Comfort Height design – provides a lower wall to step over when entering the bath, but maintains the comfortable soaking depth of standard tubs
• Installs in a drop in configuration
• Tub comes standard with molded lumbar support and armrests, furthering the user’s comfort
• Textured bottom surface.
• Equipped with an overflow assembly, permitting the user to enjoy a deep soak without worrying about spillage
• ADA compliant – complies with the standards set forth by the Americans with Disabilities Act

Product Technologies / Benefits:

• • Material – ExoCrylic: Kohler baths constructed of ExoCrylic material are 30% lighter than standard tubs, produce 90% fewer volatile organic compounds (VOCs) during manufacturing, and offer an easier, mortarless installation.

Product Specifications:

• Overall Height: 19″ (measured from rim to bottom of tub)
• Overall Width: 32″ (measured from back outer rim to front outer rim)
• Overall Length: 66″ (measured from left outer rim to right outer rim)
• Basin Width (Bottom): 19-5/8″ (back to front measurement at bottom of basin walls)
• Basin Length (Bottom): 50-3/8″ (right to left measurement at top of basin walls)
• Basin Width (Top): 24-1/16″ (back to front measurement at top of basin walls)
• Basin Length (Top): 57-5/16″ (right to left measurement at top of basin walls)
• Water Depth: 15-5/16″ (depth of water at tub’s maximum capacity)
• Maximum Water Capacity: 66 gallons
• Drain Location: Reversible
• Drop-In Cutout Required: 64-1/2″ x 30-1/2″

Variations of K-1948:

• K-1948-W1: soaking bath and bask heated surface version of this tub
• K-1949-G: bubblemassage air bath version of this tub
• K-1949-GW: bubblemassage air bath and bask heated surface version of this tub
• K-1949-VB: vibracoustic version of this tub
• K-1949-VBW: vibracoustic and bask heated surface version of this tub
• K-1949: whirlpool version of this tub
• K-1949-H: whirlpool and heater version of this tub
• K-1949-W1: whirlpool and bask heated surface version of this tub
• K-1949-XHG: whirlpool and bubblemassage air bath version of this tub
