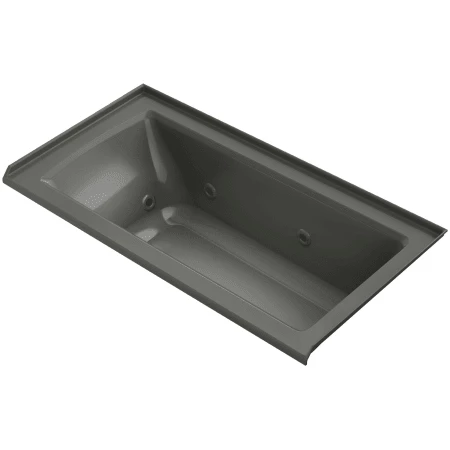

Kohler Archer 60″ Drop-In Jetted Whirlpool Bath Tub – Right Drain

Product Features:

• Kohler tubs are fully covered under warranty for up to a year after installation
• All jets are fully adjustable for water intensity and direction of flow
• Jets can be turned off completely
• Finger pads on outer ring for easy adjustment
• Shallow recess for ease of cleaning
• Tub constructed of ExoCrylic delivering durability and classic aesthetic appeal
• Whirlpool hydrotherapy tub – provides one of the most relaxing and invigorating bath experiences available
• Single speed whirlpool with 8 fully adjustable color-matched jets offer optimum performance and value
• Hydromassage flow and direction that can be controlled at each jet
• Comfort height design – provides a lower wall to step over when entering the bath, while maintaining the comfortable soaking depth of standard tubs
• Drop-in installation simplifies mounting while maintaining a sleek appearance
• Tub comes standard with molded lumbar support furthering the users comfort
• A textured slip-resistant bottom takes the worry out of slipping and sliding as you move about the tub
• Equipped with an overflow assembly permitting the user to enjoy a deep soak without worrying about spillage
• ADA compliant – complies with the standards set forth by the American’s with Disabilities Act

Product Technologies and Benefits:

• ExoCrylic – Kohler Baths constructed of ExoCrylic material are 30% lighter and offer an easier, mortar-less installation, as well as using 90% fewer volatile organic compounds produced during manufacturing.
• Whirlpool Tubs – Kohler Whirlpool tubs are designed to deliver powerful jets of water and air that are fully adjustable in direction and massage intensity, thus allowing your own personal massage.

Specifications:

• Overall Height: 19″ (measured from the top of tub rim to the bottom of basin)
• Overall Width: 30″ (measured from back most to front most point on outer rim)
• Overall Length: 60″ (measured from left most to right most point on outer rim)
• Basin Width (Bottom): 19-11/16″ (back to front measurement of the bottom of basin walls)
• Basin Length (Bottom): 45-1/8″ (right to left measurement of the bottom of basin walls)
• Basin Width (Top): 22-1/16″ (back to front measurement of the top of basin walls)
• Basin Length (Top): 52-1/8″ (right to left measurement of the top of basin walls)
• Water Depth: 15-1/8″ (depth of water at tub’s maximum capacity)
• Maximum Water Capacity: 57 – gallons
• Drain Location: Right
• Drop-In Cutout Required: 58-1/2″ x 28-1/2″
• Pump Voltage: 120 V
• Pump Amperage: 7

Variations of K-1947-R:

• K-1946-R: soaking bath version of this tub
• K-1946-RW: soaking bath and bask heated surface version of this tub
• K-1947-GRF: bubblemassage air bath version of this tub
• K-1947-GRW: bubblemassage air bath and bask heated surface version of this tub
• K-1947-VBR: vibracoustic version of this tub
• K-1947-VBRW: vibracoustic and bask heated surface version of this tub
• K-1947-RH: whirlpool and heater version of this tub
• K-1947-RW: whirlpool and bask heated surface version of this tub
• K-1947-XHGR: whirlpool and bubblemassage air bath version of this tub
