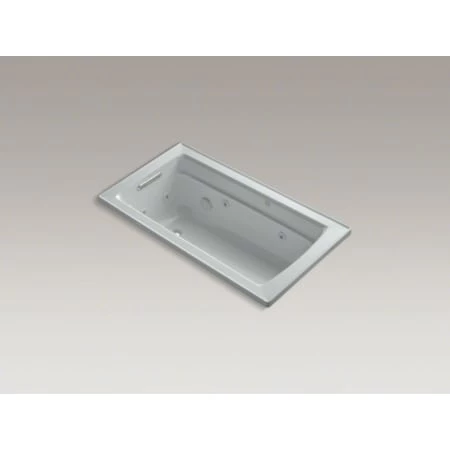

Kohler Archer 60″ Drop-In Jetted Whirlpool Bath Tub – Reversible Drain

Product Features:

• Kohler tubs are fully covered under warranty for up to a year after installation
• All jets are fully adjustable for water intensity and direction of flow
• Jets can be turned off completely
• Finger pads on outer ring for easy adjustment
• Shallow recess for ease of cleaning
• Tub constructed of acrylic delivering durability and classic aesthetic appeal
• Whirlpool hydrotherapy tub – provides one of the most relaxing and invigorating bath experiences available
• Single speed whirlpool with 8 fully adjustable color-matched jets offer optimum performance and value
• Hydromassage flow and direction that can be controlled at each jet
• Drop-in installation simplifies mounting while maintaining a sleek appearance
• Tub comes standard with molded lumbar support and armrests, furthering the users comfort
• A textured slip-resistant bottom takes the worry out of slipping and sliding as you move about the tub
• Equipped with an overflow assembly permitting the user to enjoy a deep soak without worrying about spillage
• A built-in heater keeps the water at the desired temperature as the user enjoys a long soak without the water getting cold
• ADA compliant – complies with the standards set forth by the American’s with Disabilities Act

Product Technologies and Benefits:

• Acrylic – A strong, flex resistant material with a smooth finish that resists chipping and cracking, as well as being easy to clean.
• Whirlpool Tubs – Kohler Whirlpool tubs are designed to deliver powerful jets of water and air that are fully adjustable in direction and massage intensity, thus allowing your own personal massage.
• Bask – Heated surfaces that warm your neck and back in addition to the bathwater, creating a spa-like environment. Bask equipped tubs allow you to choose one of three temperature settings for the ultimate in relaxation.
• Built-In Heater – A Built-In Heater works to keep the water warm as it recirculates throughout the intake and whirlpool jets where the water would typically bleed off heat.

Specifications:

• Overall Height: 19″ (measured from the top of tub rim to the bottom of basin)
• Overall Width: 32″ (measured from back most to front most point on outer rim)
• Overall Length: 60″ (measured from left most to right most point on outer rim)
• Basin Width (Bottom): 19-11/16″ (back to front measurement of the bottom of basin walls)
• Basin Length (Bottom): 45-1/8″ (right to left measurement of the bottom of basin walls)
• Basin Width (Top): 25-5/16″ (back to front measurement of the top of basin walls)
• Basin Length (Top): 52-3/4″ (right to left measurement of the top of basin walls)
• Water Depth: 15″ (depth of water at tub’s maximum capacity)
• Maximum Water Capacity: 58 – gallons
• Drain Location: Reversible
• Drop-In Cutout Required: 58-1/2″ x 30-1/2″
• Pump Voltage: 120 V
• Pump Amperage: 7
• Heater Voltage: 120 V
• Heater Amperage: 0.5

Variations of K-1122-W1:

• K-1123: soaking bath version of this tub
• K-1123-W1: soaking bath and bask heated surface version of this tub
• K-1122-G: bubblemassage air bath version of this tub
• K-1122-GW: bubblemassage air bath and bask heated surface version of this tub
• K-1122-VB: vibracoustic version of this tub
• K-1122-VBW: vibracoustic and bask heated surface version of this tub
• K-1122: whirlpool version of this tub
• K-1122-H: whirlpool and heater version of this tub
• K-1122-XHG: whirlpool and bubblemassage air bath version of this tub
